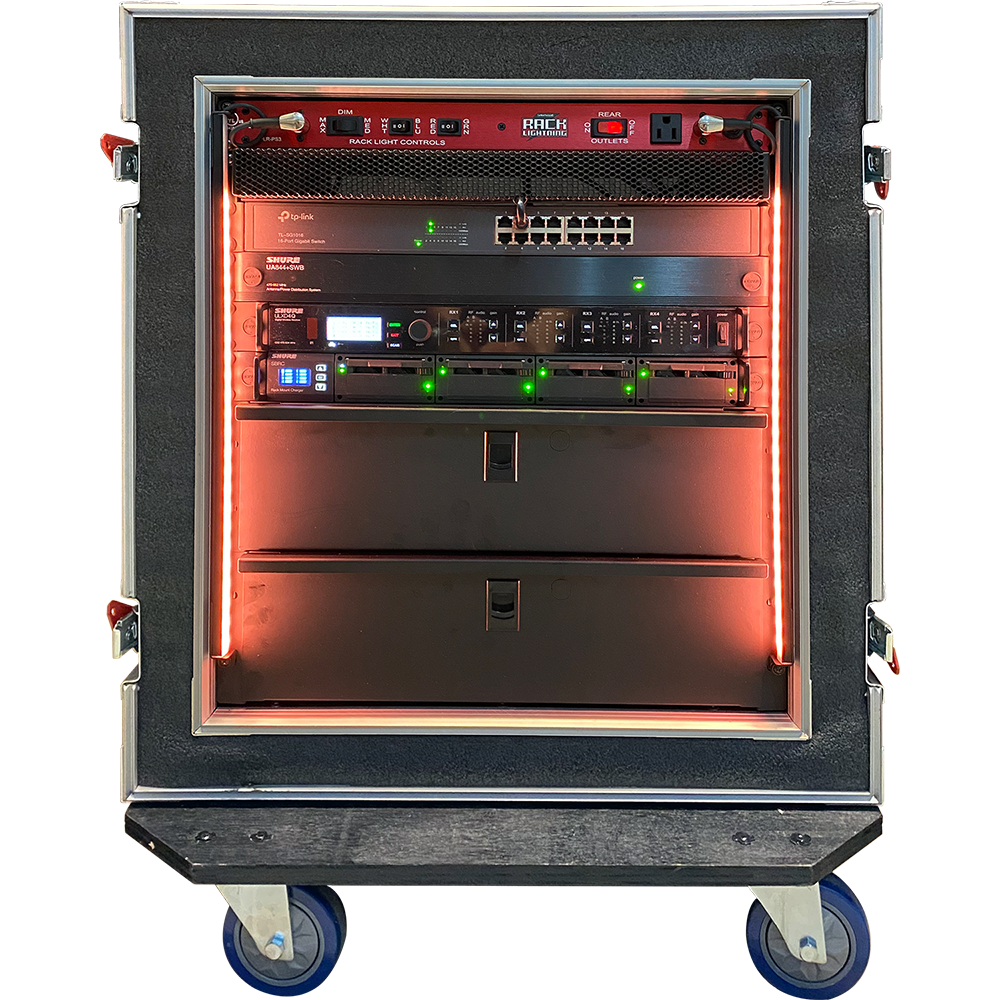

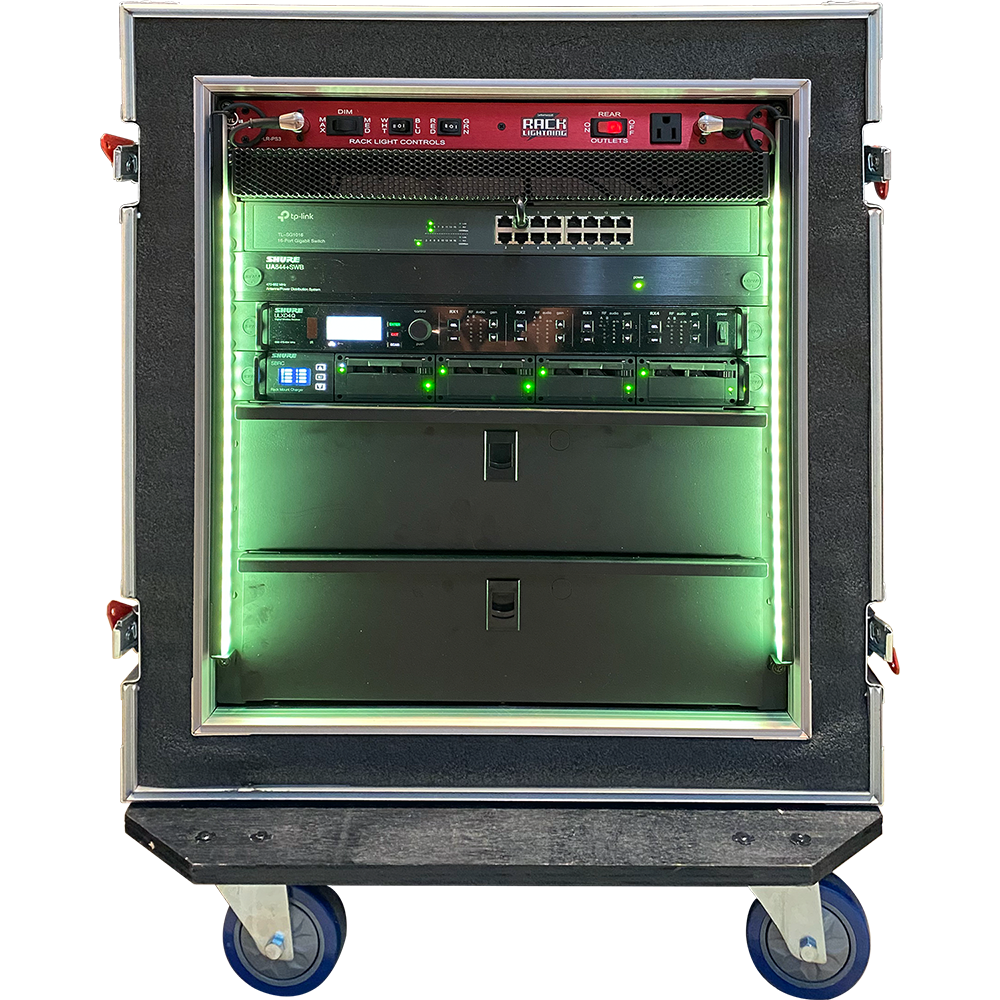

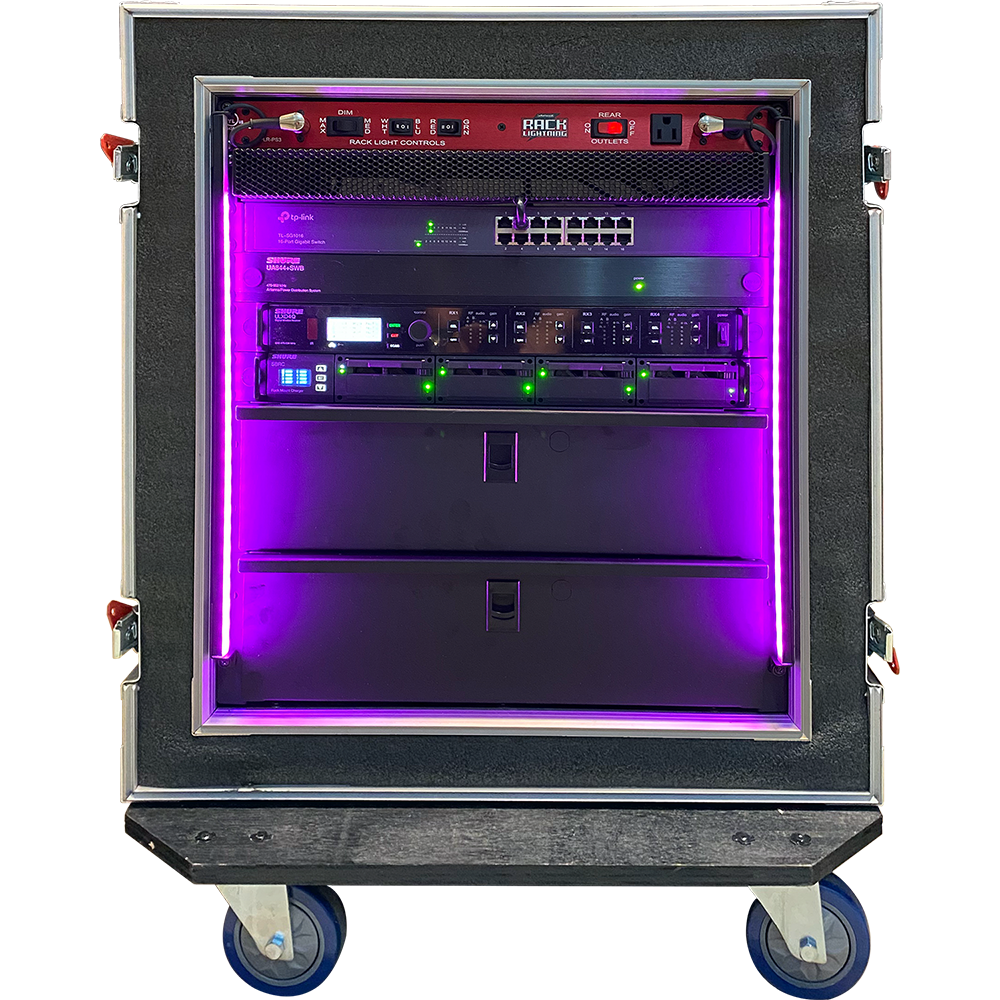

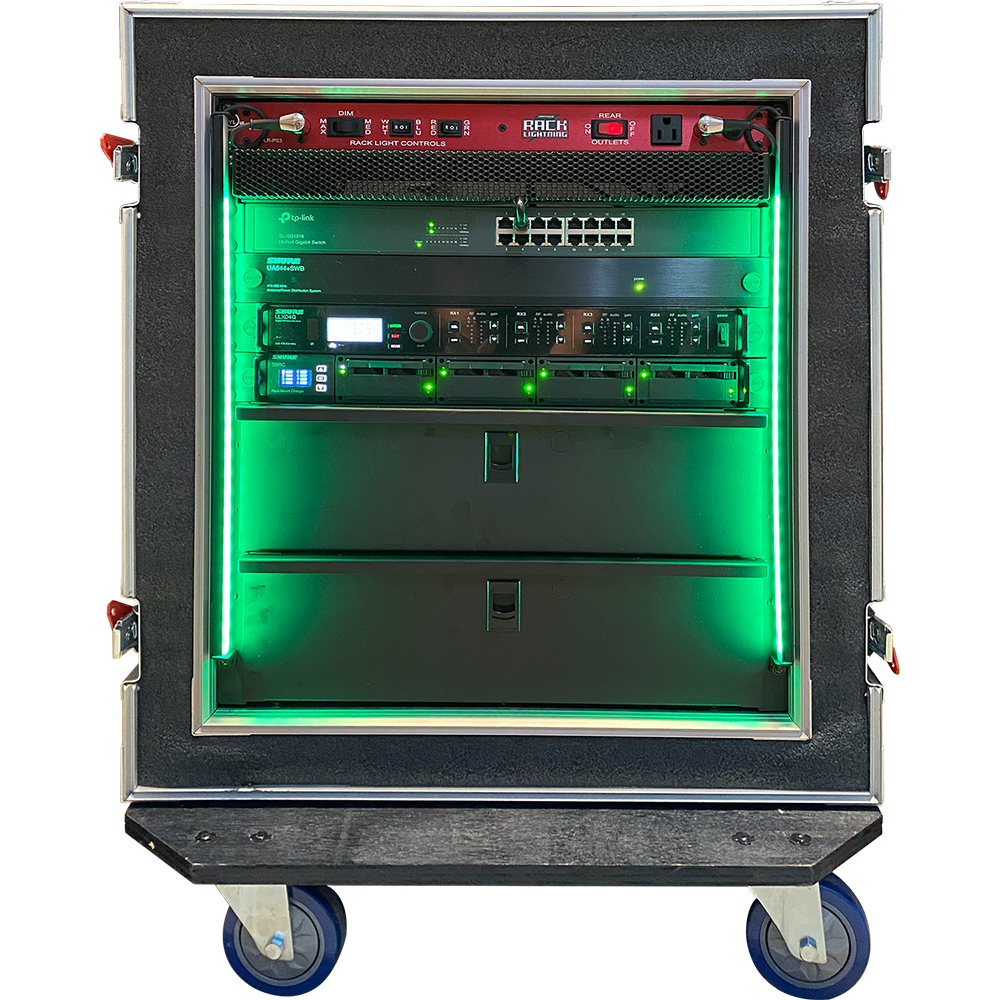

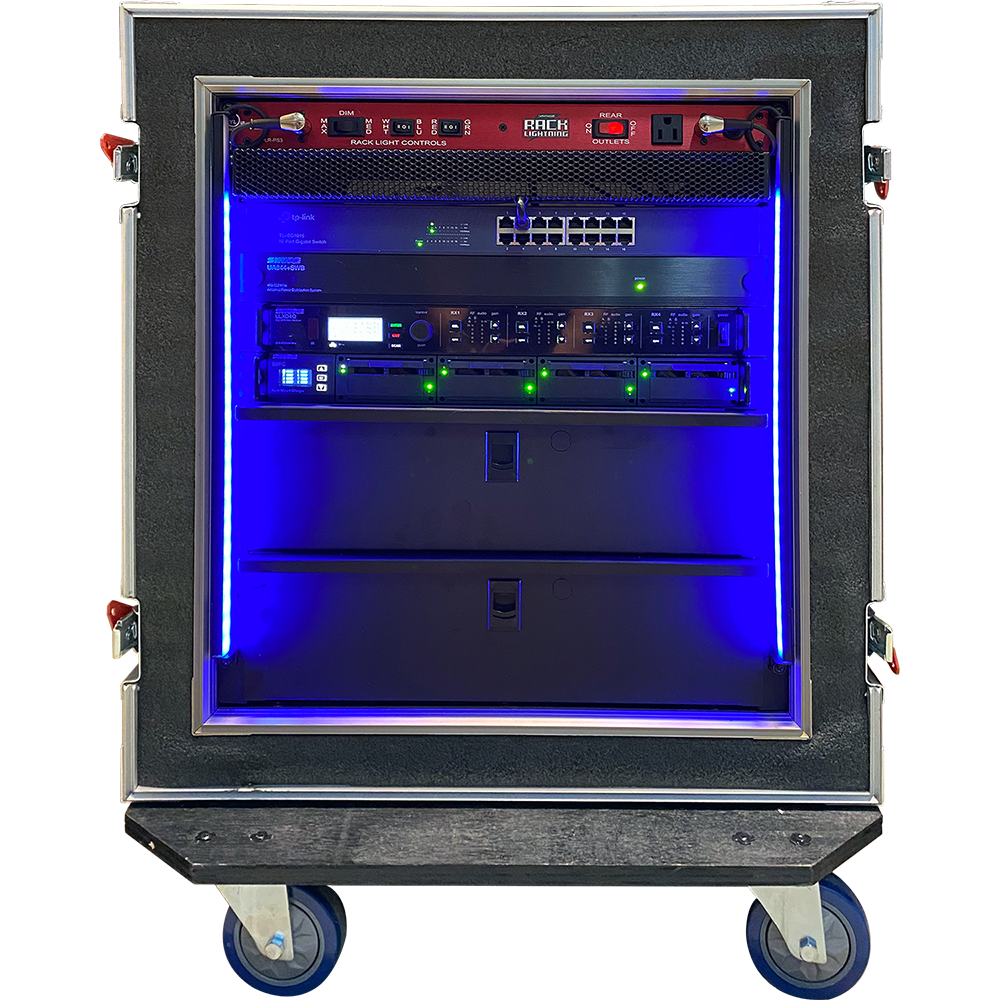

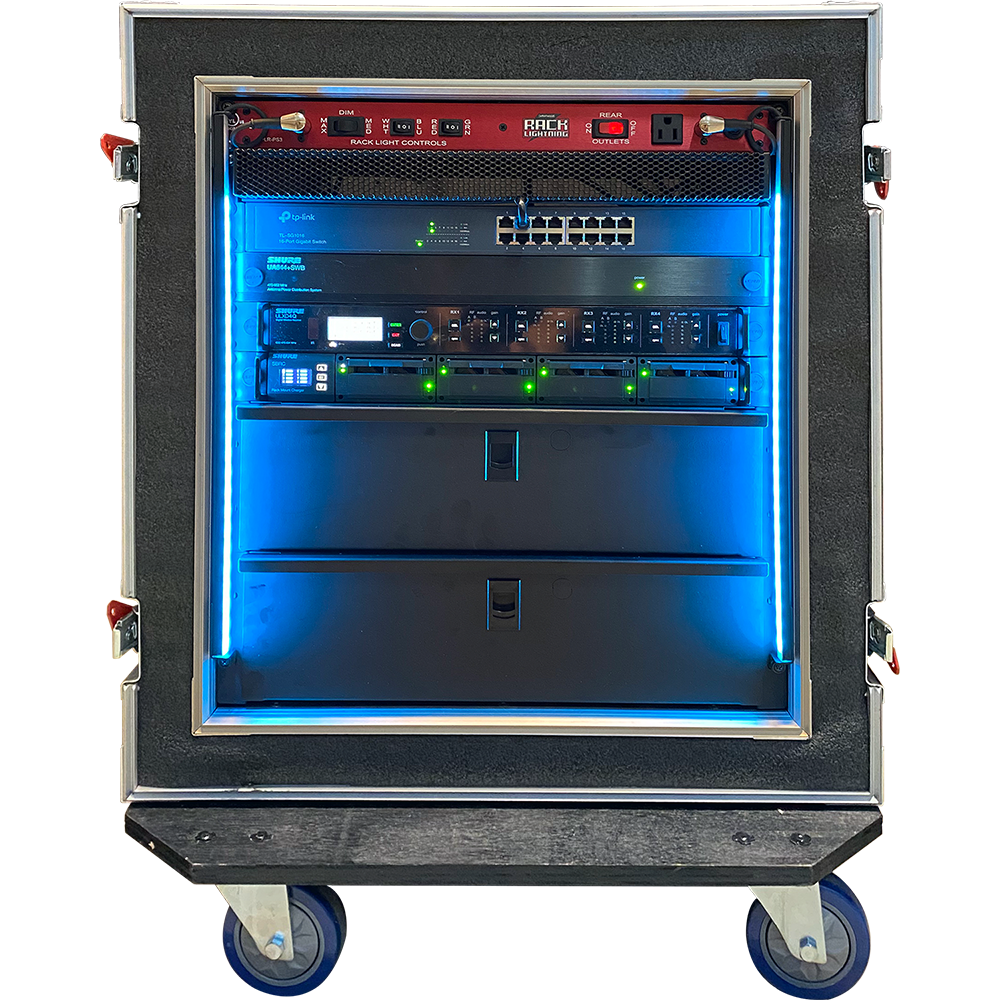

Shure - ULXD4Q Digital Wireless System.
Digital Wireless Quad Microphone System
Details
Digital quad wireless receiver offers an intelligent four-channel option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 64 MHz tuning range, and AES 256 encryption for security.
Shure ULXD4Q FEATURES
- Four receivers in a rugged 1RU metal chassis with internal power supply
- Individual gain controls, LED meters, and XLR outputs for each channel
- Up to 64 MHz tuning range (region dependent)
- Digital predictive switching diversity
- High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
- RF cascade ports allow distribution of RF signal to another unit
- Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- AES 256-bit encryption-enabled for secure transmission
- Audio summing routes two or more audio channels to combinations of receiver outputs. Use each channel’s gain adjustment to reach the desired mix.
- Dante™ digital networked audio over Ethernet
- Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
- Interference detection and alerts provided on both the receiver and WWB6
- Up to 60 dB independently adjustable gain for each channel
- Wireless Workbench® 6 (WWB6) software integration for advanced coordination, monitoring, and control
- AMX/Crestron® control
- Compatible with the AXT600 Axient® Spectrum Manager
- Yamaha® device ID allows simplified channel patching on CL consoles
- Intuitive front panel LCD menu and controls with lockout feature
- Upgraded LCD with adjustable contrast and brightness
- Audio and RF LED meters with peak indicator
- Switchable mic/line output level
- Remoteable ½ wave antennas
- YAMAHA is a registered trademark of Yamaha Corporation.
Shure SBRC FEATURES
- 1U rackmount charging bay for Axient wireless batteries
- Accommodates up to eight Li-ion batteries
- Front-panel display provides detailed feedback of battery status
- Use Shure Wireless Workbench software to monitor charging status remotely
Shure UA844+SWB FEATURES
- 5-way active antenna splitter and power distribution system
- Expands your wireless system by splitting 1 pair of antennas to 5 receivers
- Amplifies the antennas' RF signals to compensate for any loss incurred by splitting the signal
- Up to 5 UA844+SWB/LC systems can be used in a 2-tiered configuration
- Compatible with Shure QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) receivers
TP Link SG1016 FEATURES
- Innovative energy-efficient technology saves power up to 40%
- 100% Data filtering rate eliminates all error packets
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 32Gbps Switching Capacity
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Support the port N-Way Auto-Negotiation, Store and Forward.
Whirlwind PLR-PS3 FEATURES
- Rack Lightning ® master controller
- Energize and control up to (2) PLR-PSRK-16
- RGBW color mixing
- 3-stage dimming + off
- (4) 15A duplex, rear, switched
- 1-RU, 5.5” deep, 6-ft captive power cord
Shure ULXD4Q SPECIFICATIONS
| Configuration | Receiver |
| Number of Receivers | 4 |
| Receiver Frequency Range | 470-534 MHz |
| Range | 300 ft. Line-of-sight |
| Antenna Type | Detachable |
| Receiver Type | Rackmount |
| Rack Spaces | 1U |
| Front Panel Display | Yes |
| Displays | LCD |
| Frequency Response | 20Hz-20kHz |
| Dynamic Range | >120dB (A weighted) |
| Outputs | 4 x XLR |
| Data I/O | 2 x Ethernet |
| Height | 1.73" |
| Width | 19" |
| Depth | 10.79" |
| Weight | 7.6 lbs. |
Shure SBRC SPECIFICATIONS
| Type | 8-bay battery charger (4 interchangeable modules) |
| Compatibility | Shure SB900A, AXT910, AXT920 |
| Connectivity | 1 x Ethernet |
| Power Source | Standard IEC AC cable |
Shure UA844+SWB SPECIFICATIONS
| Power Requirements | 14 to 18 V DC |
| DC Output | 14 to 18 V DC (x4) |
| Output Current | Combined total from all DC outputs |
| 2.5 A, maximum | |
| Operating Temperature Range | -18°C (0°F) to 63°C (145°F) |
| Dimensions | 45 x 483 x 172 mm (H x W x D) |
| Net Weight | 1.62 kg (3.6 lbs) |
| Connector Type | BNC |
| RF Frequency Range | model dependent |
| 174 to 1805 MHz | |
| Bias Voltage | 15 V DC (150 mA, maximum) (x2) |
| Impedance | 50 Ω |
| RF Frequency Range | model dependent |
| 174 to 1805 MHz | |
| Output Intercept Point | 21 dBm, typical |
| Connector Type | BNC |
| Impedance | 50 Ω |
| Output Connector Isolation | 30 dB, typical |
| Gain | Input to any output port (Unused ports terminated in 50 Ω) |
| -1 to +1 dB |
TP Link SG1016 SPECIFICATIONS
| Device Type | Switch - 16 ports |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 7.1 in x 1.7 in |
| Status Indicators | Power, 100M device connected, 1000M device connected, link/activity |
Whirlwind PLR-PS3 SPECIFICATIONS
| EMI Filtering | Differential Mode (Line to Neutral) > 50 dB, 200 kHz to 10 MHz |
| Common Mode (Line / Neutral to Ground) > 40 dB, 200 kHz to 10 MHz | |
| Max Inrush Current | 91A |
| Power Cord | 6-ft captive power cord |
