EXM ProSub.
EXM Battery-Powered Subwoofer
Details
With 800 watts of power driving two high-output 10-inch neodymium woofers, the EXM ProSub delivers crowd-moving bass that shatters expectations of what’s possible with a portable wireless speaker. The EXM ProSub is compatible with most PA speakers and works wirelessly with the EXM Mobile8 using Bluetooth® technology. With 5.5 hours of battery life at maximum output, this subwoofer is built for the most demanding mobile & wireless gigs. Shake the foundations of any venue with the EXM ProSub.FEATURES
- Minimum 5.5 Hour Battery Life at Maximum Output
- 2x 10” Woofers with 2” Voice Coils
- Stereo 1/8" and 2x Combi-Jack Inputs
- 2x High Pass and 1x Full Range XLR Outputs
- Bluetooth® Streaming Enabled
- Bass Reflex Design
- Integrated Speaker Stand Mount
- Interlocking Rubber Feet
SPECIFICATIONS
| System Type | Battery-Powered Subwoofer |
| Power Rating | 800 W Peak (500 W Program) |
| Max SPL | 128 dB Peak (122 dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 47 Hz - 100 Hz |
| Crossover Frequency | 100 Hz |
CABINET
| Cabinet Configuration | Bass Reflex Subwoofer |
| Driver Configuration | 2x 10" LF Woofers |
| LF Driver(s) | 10" Neodymium Woofers with 2" Voice Coils |
| LF Impedance (Ohms) | 4Ω Load (2x 8Ω in Parallel) |
| LF Protection | Excursion, Voice Coil Thermal (RMS) |
| LF Amplifier Type | Class D |
| Cooling Scheme | Convection |
POWER
| Power Cable | Removeable IEC |
| Power Switch | Yes |
| Power Consumption | 150 VA |
SPECIFICATIONS
| System Type | Battery-Powered Subwoofer |
| Power Rating | 800 W Peak (500 W Program) |
| Max SPL | 128 dB Peak (122 dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 47 Hz - 100 Hz |
| Crossover Frequency | 100 Hz |

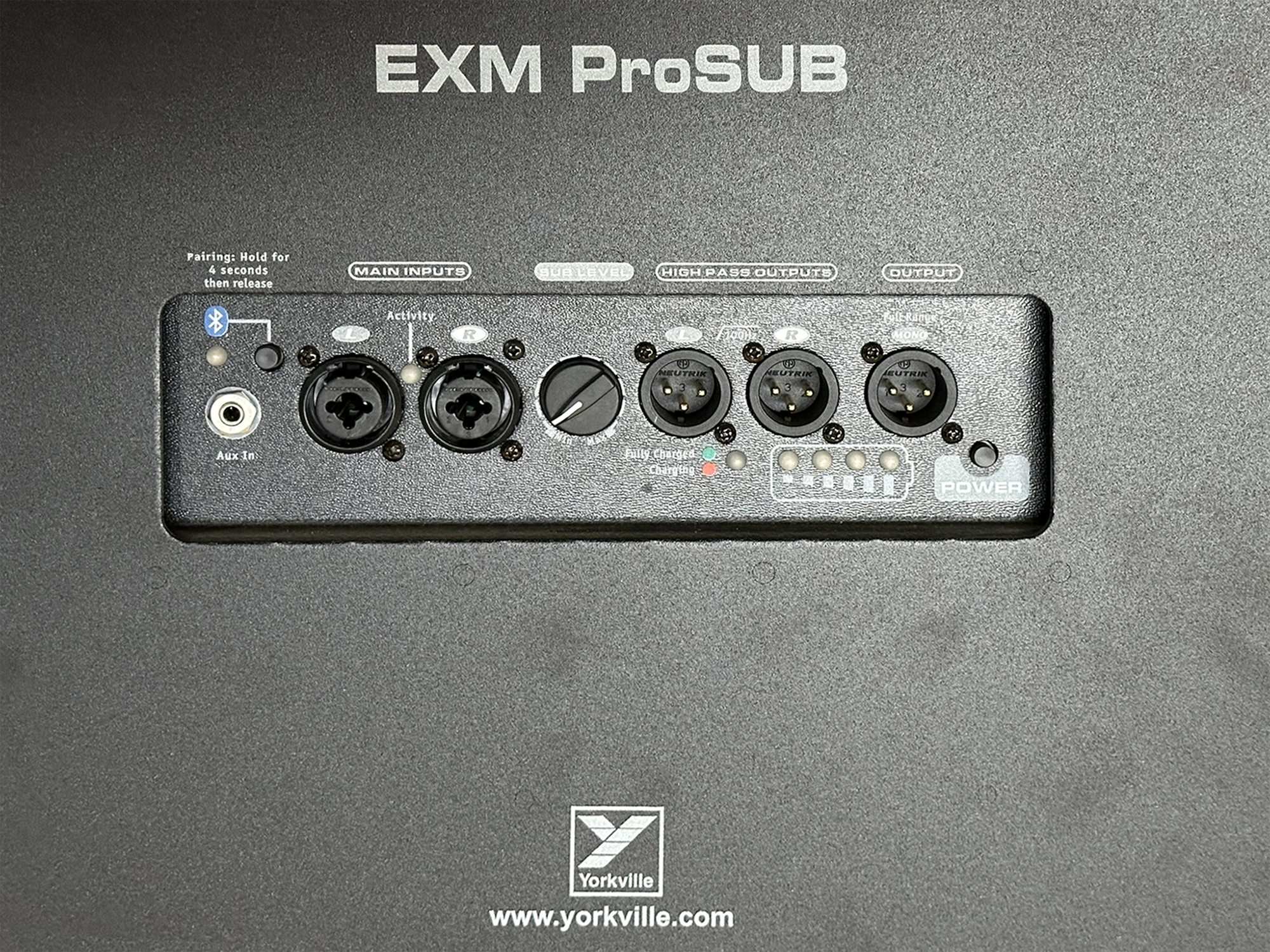

CONNECTIONS
| Inputs | 2x Combi-jack (XLR / 1/4"), 1/8"Stereo, Bluetooth® |
| Outputs | 2x XLR High Pass Out, XLR Full Range Mix Out |
CONTROL
| Level Controls | Sub Level |
| Limiter | Excursion, Thermal (RMS), Clipping |
| LED Indicators | Power, Battery Level, Charging Status, Bluetooth, Clip |
MISC
| Feet | Rubber |

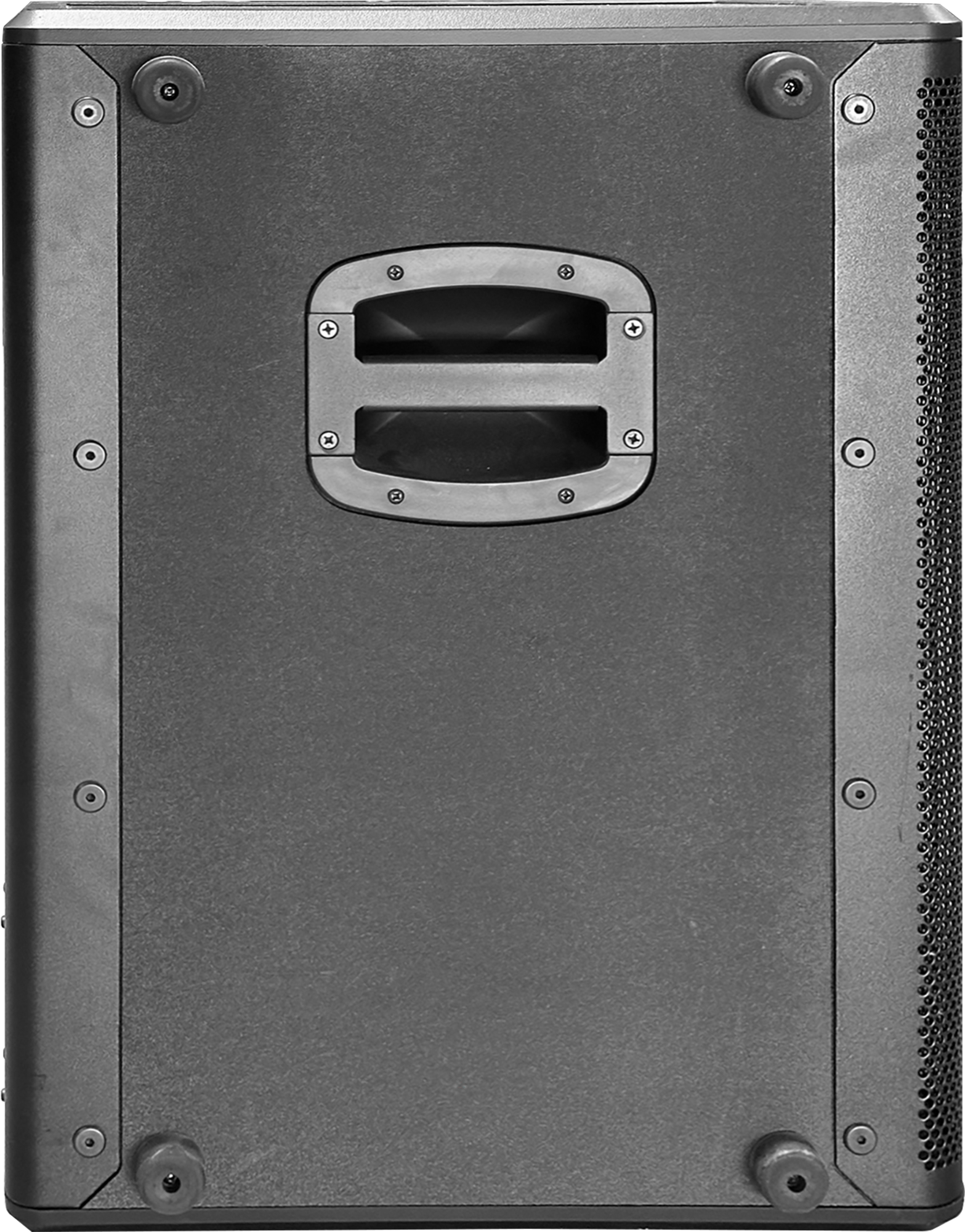

| Bar Handles | 2 (1 Left Side, 1 Right Side) |

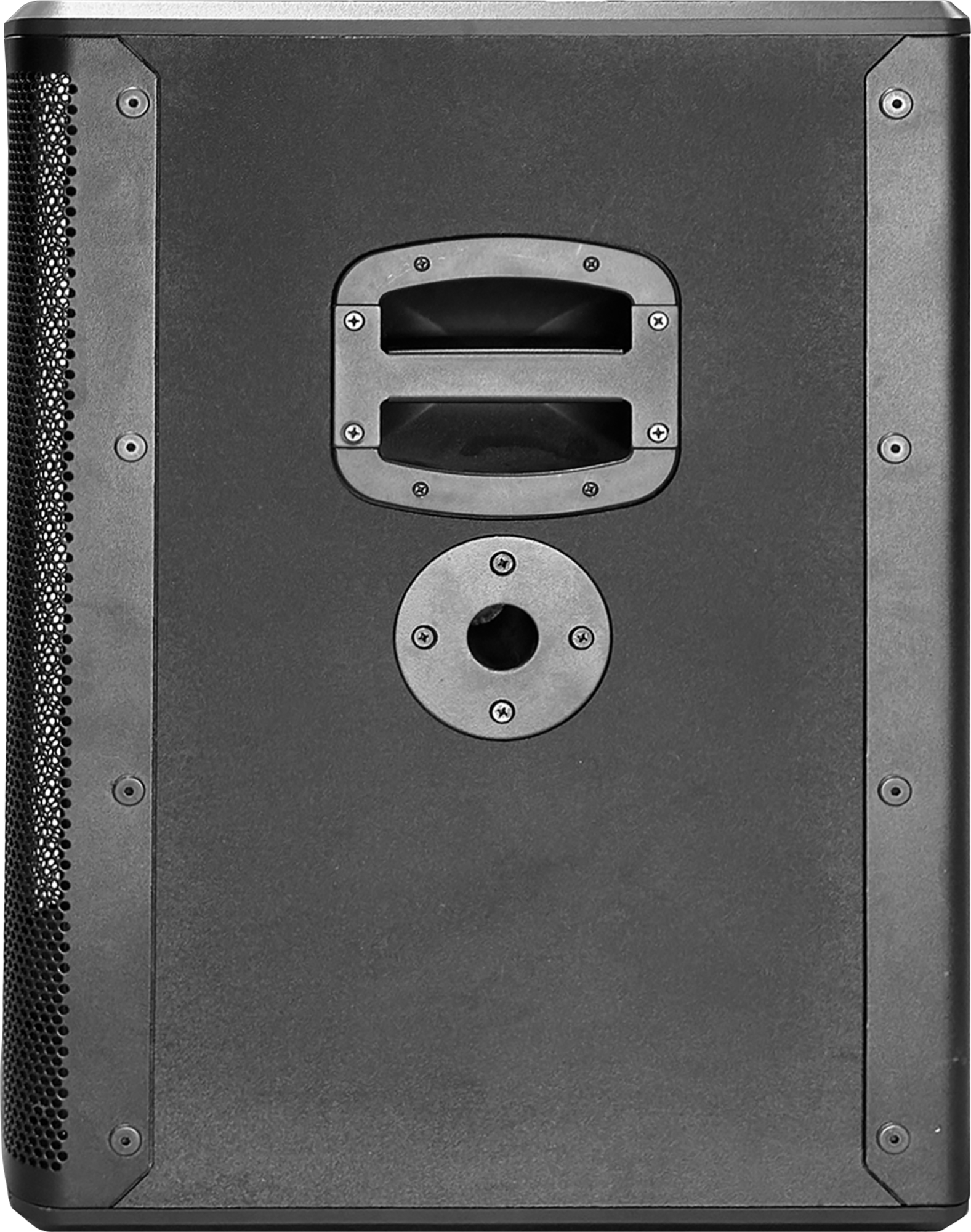

| Pole Mount Adapter (1 3/8) | 2 (1 Top, 1 Side) |
| Enclosure Materials | 12 mm Birch Plywood |
| Stacking Feature | Interlocking Rubber Feet (Top/Bottom) |
| Grille | Metal |
| Covering / Finish | ABS Laminate Plywood |
DIMENSIONS/HEIGHT
| Dimensions (DWH) | 20" x 15.5" x 27" (51 cm x 39 cm x 60 cm) |
| Weight | 67 lbs / 30.5 kg |
