Fender Telecaster.
Electric Guitar.
Details
The Fender Standard Telecaster Electric American Deluxe Guitar features the best of the old and the new: a fast-action gloss maple neck, cast/sealed machine heads, 2 classic single-coil pickups, and a 6-saddle string-thru-body bridge. Since its introduction in the early '50s, guitarists in all musical genres have relied on the Fender Telecaster guitar for its powerful tone and smooth playability.

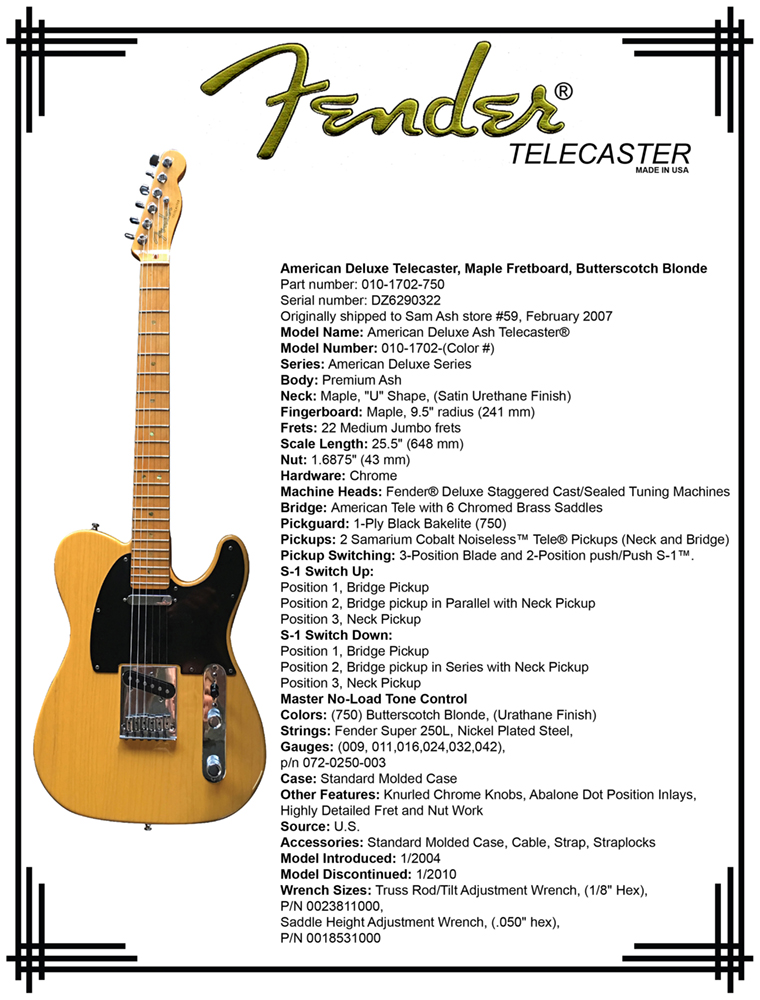

SPECIFICATIONS
| Model | American Deluxe Telecaster, Maple Fretboard, Butterscotch Blonde. Originally shipped to Sam Ash store #59, February 2007 |
| Part number | 010-1702-750 |

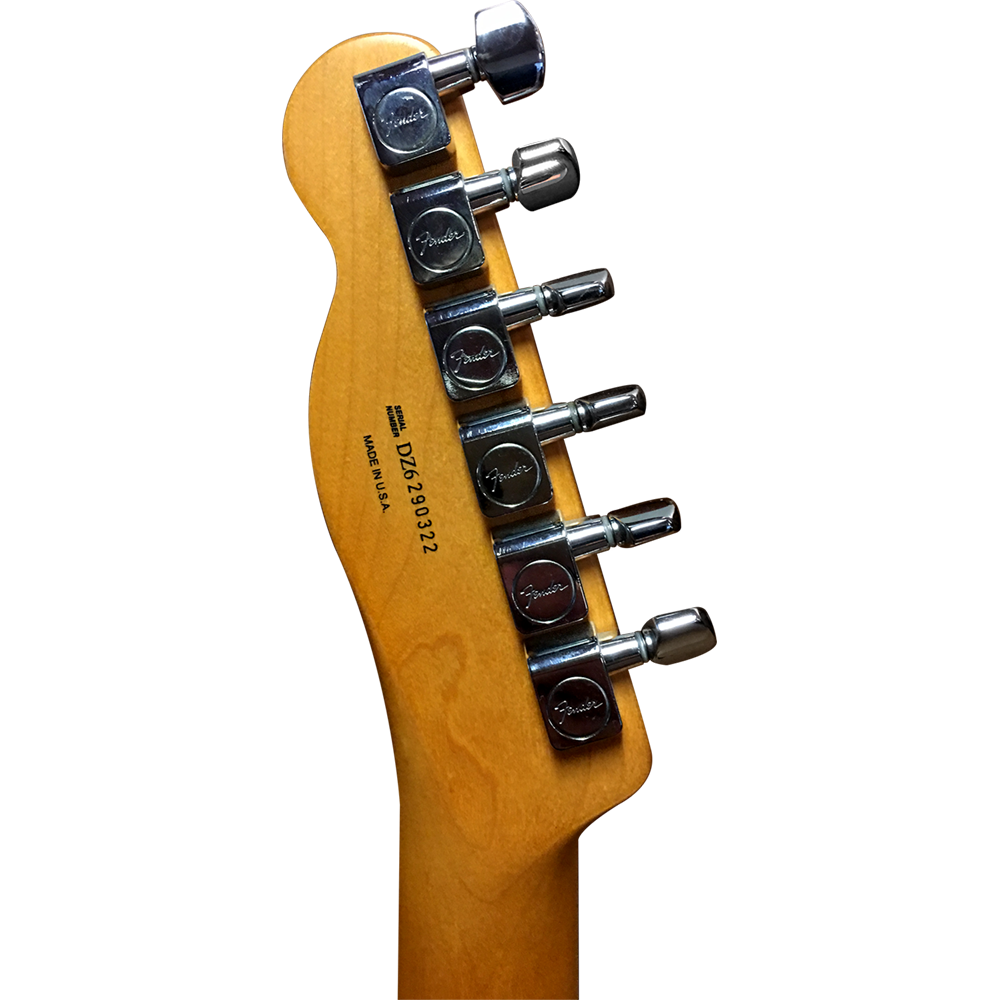

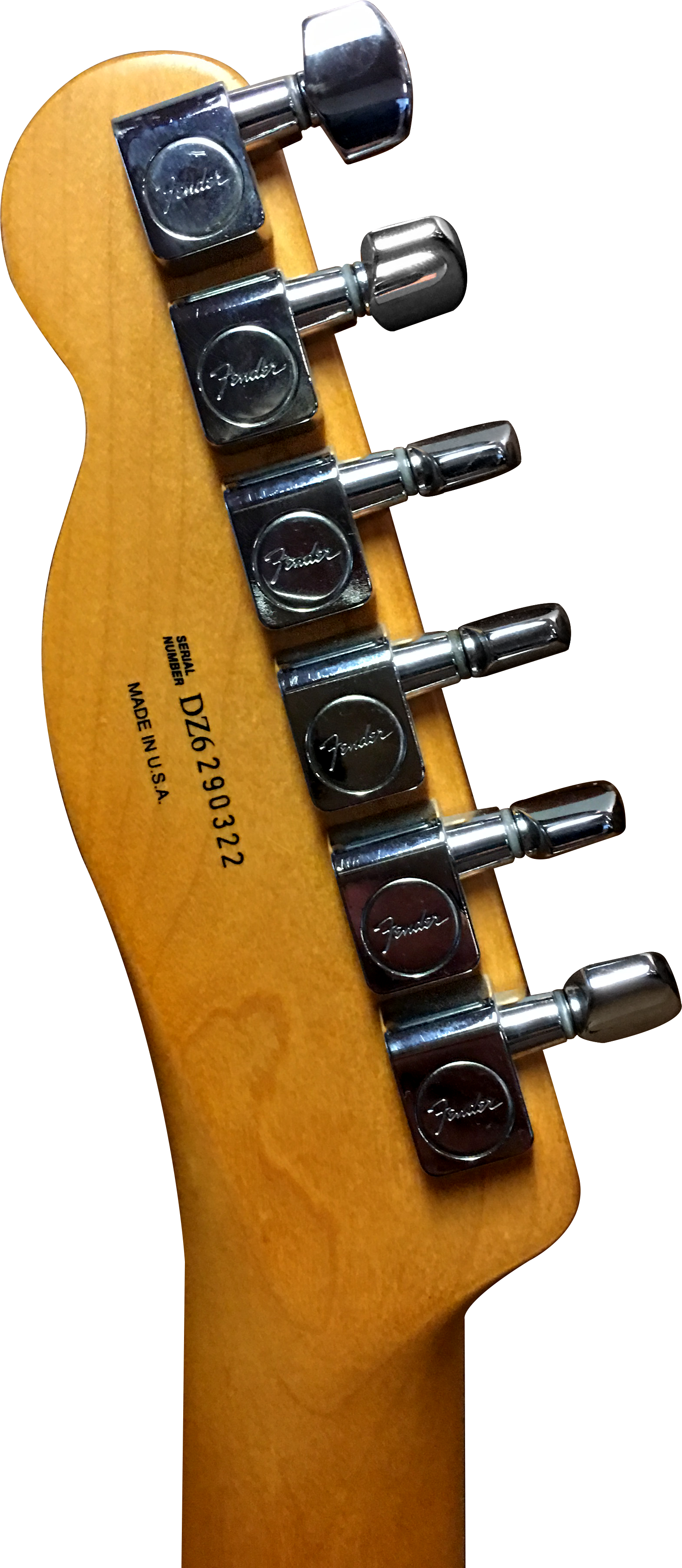

| Serial number | DZ6290322 |
| Model Name | American Deluxe Ash Telecaster® |
| Model Number | 010-1702-(Color #) |
| Series | American Deluxe Series |
| Body | Premium Ash |
| Neck | Maple, "U" Shape, (Satin Urethane Finish) |
| Fingerboard | Maple, 9.5" radius (241 mm) |
| Frets | 22 Medium Jumbo frets |
| Scale Length | 25.5" (648 mm) |
| Nut | 1.6875" (43 mm) |
HARDWARE
| Chrome Machine Heads | Fender® Deluxe Staggered Cast/Sealed Tuning Machines |
| Bridge | American Tele with 6 Chromed Brass Saddles |
| Pickguard | 1-Ply Black Bakelite (750) |
| Pickups | 2 Samarium Cobalt Noiseless™ Tele® Pickups (Neck and Bridge) |
| Pickup Switching | 3-Position Blade and 2-Position push/Push S-1™ |
| S-1 Switch Up | Position 1, Bridge Pickup |
| Position 2, Bridge pickup in Parallel with Neck Pickup | |
| Position 3, Neck Pickup S-1 Switch Down: Position 1, Bridge Pickup | |
| Position 2, Bridge pickup in Series with Neck Pickup | |
| Position 3, Neck Pickup Master No-Load Tone Control | |
| Colors | (750) Butterscotch Blonde, (Urathane Finish) |
| Strings | Fender Super 250L, Nickel Plated Steel, |
| Gauges | (009, 011,016,024,032,042), |
| p/n 072-0250-003 |
MISC.
| Case | Standard Molded Case |
| Other Features | Knurled Chrome Knobs, Abalone Dot Position Inlays, Highly Detailed Fret and Nut Work |
| Source | U.S. |
| Accessories | Standard Molded Case, Cable, Strap, Straplocks |
| Model Introduced | 1/2004 |
| Model Discontinued | 1/2010 |
| Wrench Sizes | Truss Rod/Tilt Adjustment Wrench, (1/8" Hex), P/N 0023811000, Saddle Height Adjustment Wrench, (.050" hex), P/N 0018531000 |
